Series 8 Loud Speaking Telephone (Tunnel emergency telephone)
Introduction
Introducing our newly designed and technologically advanced Series 8 Loud Speaking Telephone. This aesthetically pleasing phone has been engineered to achieve the highest degree of vandal resistance and weather-proofing. This phone is ideal for use in tunnels for rail or road and meets the Australian specifications. It is also a Fire Service emergency telephone and includes remote testing and programming. Being highly vandal resistant it is therefore ideal for public areas, the Series 8 will operate in harsh environments with temperature fluctuations from -20 to +60 degrees Celsius. They are also lightning and surge protected.
Key Features
- Remote or on-site programming
- Fault monitoring
- Smart self-monitoring System
- Highly Vandal Resistant
- Insect and Weather-proof
- Lightning and Surge Protected
- Available in PTSN, VoIP, 3G
- Keypad optional
Specifications Analogue
Technical
- Analogue 2 Wire Telephone
- Line Powered
- Remote or On-Site Programming
- Fault Monitoring
- Automatic Hang-up upon receiver terminating the Call
- Can be set for Timed Hang-up
Engineering
- Dimensions 375mm high X 180mm wide X 100mm deep
- Weight 4kg
- Marine Grade Die-Cast aluminium case
- Stainless steel fittings
- UV rated powder coating
- Single stainless steel IP67 button operation
Mounting

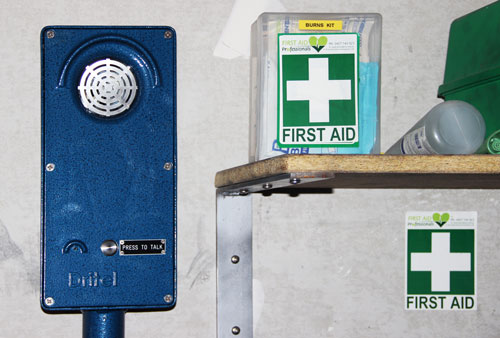

- Pole or Post mounted. Brackets and bolts can be supplied

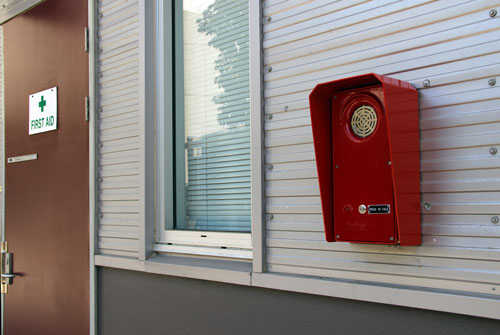

- Wall Mounted. Screws directly into wall, screws supplied.
Options
- Management and Smart Monitoring system
- Call Logging
- Auto Answer of Incoming calls
- 5 Minute Hang-up
- Wide range of Colors
- Models Available Include:
- Hotline
- Programmed Auto Dialling
- Keypad Style
- Available in Analogue, VoIP and 3G
- Mounting Brackets and Bolts
Specifications VoIP
Device Specification
- Adapter(Input/Output) Input:100-240VAC 50～60Hz Output:5V/1A32
- Port WAN 10/100Base- T RJ-45 for LAN, Auto MDIX
- LAN 10/100Base- T RJ-45 for PC, Auto MDIX
- Power Consumption Idle:1.5W/Active:1.8W
- Operation
- Temperature 0～40℃
- Relative Humidity 10～65%
- Main Chipset Broadcom
- SDRAM 8Mbits
- Flash 2Mbits
Voice Features
- Support 2 lines SIP, SIP 2.0 (RFC3261)
- Code: G.711A/u，G.7231 high/low，G.729, G.722,G.726
- Echo cancellation: Support G.168 and hands-free can support 96ms
- Support VAD，CNG
- NAT transverse: support STUN
- Supports full duplex
- SIP support SIP domain，SIP authentication（none，basic， MD5），DNS name of server, peer to peer
- SIP supports 2 servers, user can call through either server when calling in or out
- DTMF: SIP info，DTMF Relay，RFC2833
- SIP application: contains SIP call forward/transfer/holding/waiting/3 way conference/Paging and intercom/ click to dial/pickup/ join call/redial/unredial.
- Call control features: Flexible dial map, supports hotline, empty calling no. reject server, black list for reject, authenticated call, do not disturb, caller ID.
- Can dial using private server automatically when public server unregistered while private server is registered successfully
- Supports phonebook 500 records, incoming calls / outgoing calls / missing calls. Each supports 100 records
- Supports MWI
- Supports conference call in server
- Phonebook supports VCard standard
- Supports 12/24 time format
- Supports daylight saving time
- Supports path, gruu
- Supports SIP Privacy
Network Features
- WAN/LAN: support Bridge mode.
- Supports PPPoE for xDSL
- Supports VLAN
- Supports Stun penetration
- Supporst DHCP get IP on WAN port
- Qos supports Diffserv.
- Support network tools: contain ping，trace route，telnet client
Applications
Applications
- Tunnel Mount for Rail or Road
- Fire Service Phone

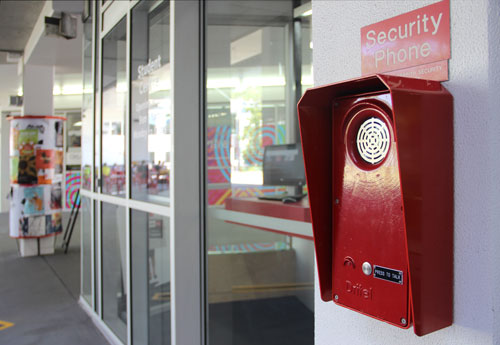

- University Campus Security Phone
- Door Stations
- Car Park Attendant Station
- Emergency Rail Platform Phone
